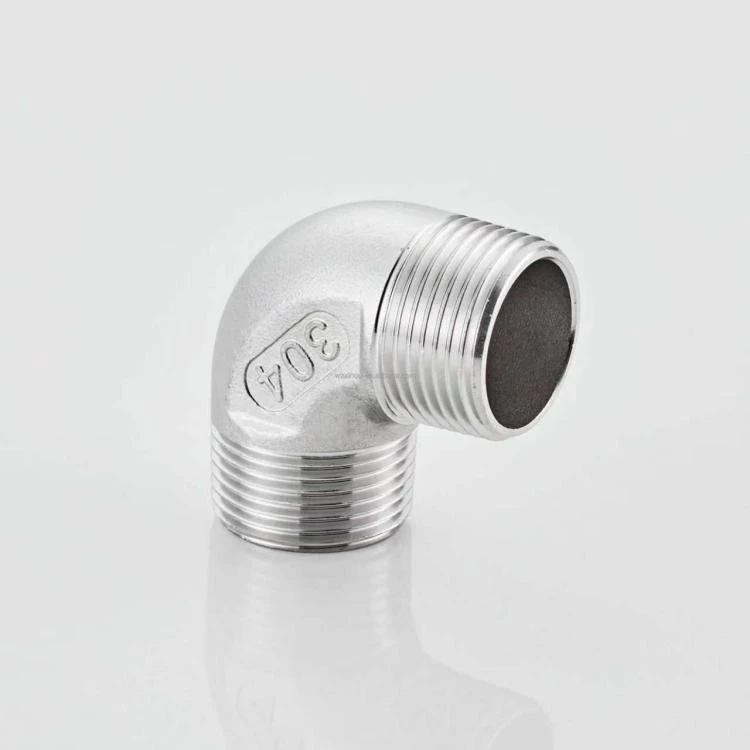

Stainless Steel Pipe Fitting Elbow 304
Material: ASTM A403 WP304/06Cr19Ni10
Size range: DN15 (1/2") - DN600 (24") or customized
Angles: 45°, 90°, 180° (standard), other angles can be customized
Connection methods: Butt welding, socket welding, thread (NPT, BSPT/BSPP)
Working pressure: Determined based on standards, wall thickness and temperature
Operating temperature: -196°C to +800°C (pressure derating must be considered)
Surface treatment: Pickling and passivation (standard), mechanical polishing (e.g. Ra≤0.8μm, for sanitary grade)
- Product Introduction
Key product features
Multiple Angle options
45°elbow: Used for connections that require a smaller Angle of turn.
90°elbow: The most commonly used model, used for vertical pipe connection.
180° elbow: Used for U-shaped turning or backflow of pipelines.
(Optional) Other angles: such as 30°, 60°, etc. Customization is available upon request.
Multiple manufacturing processes
Seamless elbow: Made by pushing or extruding seamless steel pipes, it features a uniform and dense structure without welds, and has a higher pressure-bearing capacity.It is suitable for high-pressure, high-purity, and high-safety requirements applications.
Welded elbow: Made by rolling and welding steel plates (meeting standard requirements), it is economical and suitable for medium and low pressure as well as large-diameter pipelines.
Multiple connection methods
Butt welding: The most commonly used industrial connection method, it achieves a permanent, high-strength, and leak-free connection with pipelines through welding, and is suitable for high-pressure and high-temperature systems.
Socket welding: After inserting the pipe into the socket of the elbow, fillet weld welding is carried out.The installation is relatively simple and suitable for medium and small diameters and medium and high pressure systems.
Thread: Internal or external thread connection, easy to install and disassemble, suitable for low-pressure, small-diameter, maintenance or non-permanent connection applications.
Precision Manufacturing and Quality Control
Precise dimensional tolerances ensure smooth installation and reduce stress.
Strict inner and outer surface treatment, smooth and free of burrs, reduces flow resistance and prevents medium residue.
A complete inspection process (including size inspection, surface inspection, pressure testing, non-destructive testing, etc.) ensures the reliability of each Stainless Steel Pipe Fitting Elbow 304 product.
Reasons For Choosing Our Company's Stainless Steel Pipe Fitting Elbow 304
- Pure materials: High-quality 304 stainless steel raw materials that strictly meet standards are selected.
- Exquisite craftsmanship: Advanced production equipment and mature manufacturing techniques ensure the precision and quality of the products.
- Complete range of specifications: Offering a rich selection of multiple angles, specifications and connection methods to meet diverse needs.
- Reliable quality: A strict quality management system, with full-process control from raw materials to finished products.
- Stable supply: Sufficient inventory and a complete supply chain ensure timely delivery.
