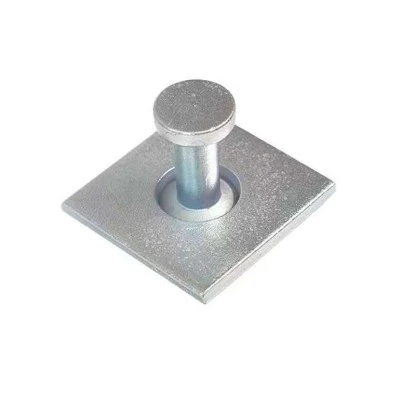

Construction Anchor Plates
Material selection: Q235B carbon steel /304 stainless steel/alloy steel
Tensile strength: 400-800MPa
Anti-corrosion process: Hot-dip galvanizing, Dacromet
Specification parameters: Thickness 6-30mm, size 100×100mm to 500×500mm (customizable)
Adapter bolts: M12-M30 standard specifications, hole tolerance ±0.1mm
Temperature range: -40℃ to +200℃ (High-temperature materials are optional)
Application fields: steel structures, concrete reinforcement, curtain walls, Bridges, industrial equipment.
- Product Introduction
Qingdao Ruixinyang Machinery Co., Ltd. is committed to providing customers with high-strength and high-durability Construction Anchor Plates. Our product are made of high-quality materials and advanced technology, and are widely used in steel structures, concrete structures, curtain wall projects, Bridges and tunnels, etc., ensuring the stability and safety of building structures.
Product features
01
High-strength material
Material: 304/316 Q235B carbon steel, stainless steel, alloy steel (optional)
Tensile strength: 400 mpa (carbon steel) or higher, 520 mpa or greater (stainless steel)
Surface treatment: hot dip galvanizing, Dacromet, epoxy spraying (optional)
02
Precise design
Processing technology: precision stamping + CNC drilling, tolerance control within ±0.1mm
Hole position adaptation: support M12-M30 bolts, hole spacing can be customized according to customer requirements
03
Diverse specifications
Thickness: 6mm-30mm
Size: standard specification 100×100mm to 500×500mm, support non-standard customizationShape: Square, round, irregular (such as L-shaped, T-shaped)
Technical parameters
Material of Q235B carbon steel / 304 stainless steel/alloy steel (optional)
Tensile strength 400MPa-800MPa (depending on material)
Anti-corrosion grade hot dip galvanized (80μm)
Dacromet (10μm)Applicable temperature -40℃~+200℃ (special material can withstand high temperature)
Bolt fitting specifications M12, M16, M20, M24, M30 (customizable)
Application field
Steel structure engineering
used for beam and column connection, support fixed, enhance the overall stability.
Concrete structure
pre-embedded or post-anchored to enhance the bearing capacity of concrete components.
Curtain wall installation
fix glass and metal curtain walls to ensure the performance of wind pressure and earthquake resistance.
Bridge and tunnel
anchorage of key parts to extend the service life of infrastructure.
Service Commitment
Fast delivery: Samples are delivered within 7-15 days, bulk orders within 15-20 days, and urgent orders are processed on an expedited basis.
Welcome to visit our official website or call for consultation.We will provide you with professional Construction Anchor Plates recommendations and technical guidance!
