What are the common sizes of gate valves?

Gate valves are essential components in various industrial applications, controlling the flow of liquids and gases. As a gate valve supplier, understanding the common sizes of gate valves is crucial for meeting the diverse needs of our customers. In this blog post, we'll explore the typical sizes of gate valves, their applications, and how they fit into different systems.

Understanding Gate Valve Sizes

Gate valve sizes are typically measured by the nominal pipe size (NPS) in inches, or in the metric system by the diameter in millimeters. The size of a gate valve determines its flow capacity, pressure rating, and the type of pipes it can be connected to. Smaller gate valves are often used in residential and small - scale commercial applications, while larger ones are employed in industrial settings such as oil refineries, power plants, and water treatment facilities.

Common Small - Sized Gate Valves

Small - sized gate valves, usually ranging from 1/2 inch to 2 inches in NPS, are commonly used in residential plumbing systems, small irrigation systems, and some light - duty commercial applications. These valves are relatively easy to install and operate, and they can handle lower flow rates and pressures.

For example, a 1/2 - inch gate valve might be used in a household water supply line to control the flow of water to a specific fixture, such as a sink or a toilet. A 1 - inch gate valve could be used in a small - scale irrigation system to regulate the flow of water to a garden or a small lawn.

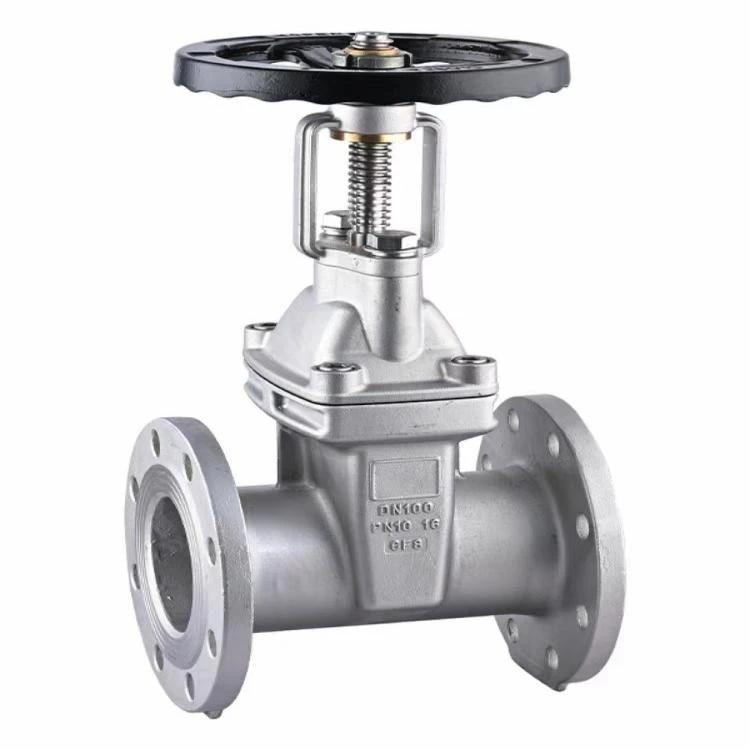

In our product range, we offer high - quality Rising Stem Gate Valve in Stainless Steel in these small sizes. Stainless steel construction ensures durability and resistance to corrosion, making them suitable for both indoor and outdoor use.

Medium - Sized Gate Valves

Medium - sized gate valves, with NPS ranging from 2 inches to 12 inches, are widely used in commercial and industrial applications. They can handle higher flow rates and pressures compared to small - sized valves.

In commercial buildings, 3 - inch to 6 - inch gate valves are often used in the main water supply lines, heating systems, and ventilation systems. In industrial settings, these valves are used in chemical processing plants, food and beverage industries, and some manufacturing facilities.

Our Non - rising Stem Gate Valve in medium sizes is a popular choice for applications where space is limited. The non - rising stem design allows the valve to be installed in areas with low headroom, while still providing reliable flow control.

Large - Sized Gate Valves

Large - sized gate valves, with NPS greater than 12 inches, are mainly used in heavy - duty industrial applications. These valves are designed to handle extremely high flow rates and pressures.

In oil and gas pipelines, power plants, and large - scale water treatment facilities, 14 - inch to 48 - inch gate valves are commonly used. For instance, in a large - scale water treatment plant, a 36 - inch gate valve might be used to control the flow of water in the main intake or discharge lines.

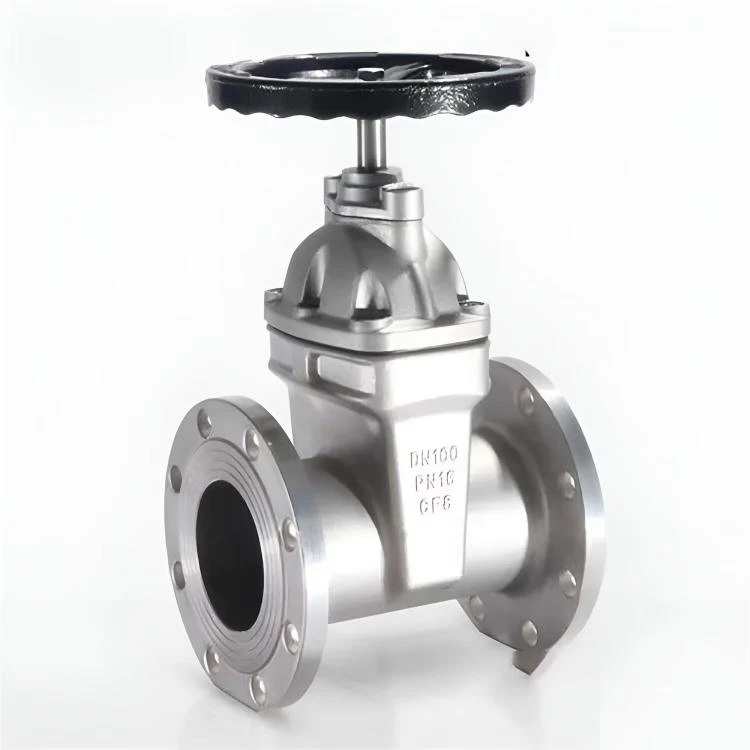

We also offer Non - rising Stem Gate Valve in Stainless Steel in large sizes. The stainless steel material provides excellent resistance to corrosion, which is crucial in applications where the valve is exposed to harsh chemicals or high - pressure fluids.

Factors Affecting Gate Valve Size Selection

When selecting the appropriate size of a gate valve, several factors need to be considered:

1. Flow Rate: The flow rate of the fluid in the system determines the size of the valve. A larger valve is required for higher flow rates to ensure smooth and efficient flow.
2. Pressure Rating: The pressure rating of the system also plays a crucial role. Higher - pressure systems require valves with thicker walls and stronger construction, which may also affect the size selection.
3. Pipe Size: The gate valve must be compatible with the pipe size in the system. It is important to choose a valve with the same nominal pipe size as the connecting pipes to ensure a proper fit and reliable operation.
4. Application: Different applications have different requirements. For example, in a fire protection system, a larger valve may be needed to ensure a sufficient supply of water in case of an emergency.

Conclusion

As a gate valve supplier, we understand the importance of providing a wide range of gate valve sizes to meet the diverse needs of our customers. Whether it's a small - sized valve for a residential application or a large - sized valve for an industrial project, we have the right product for you.

If you are in need of gate valves for your project, we invite you to contact us for a detailed discussion. Our team of experts can help you select the appropriate size and type of gate valve based on your specific requirements. We are committed to providing high - quality products and excellent customer service.
