How to increase the torque capacity of v belt pulleys?

V-belt pulleys are essential components in many power transmission systems, and increasing their torque capacity can lead to improved performance and efficiency. As a v-belt pulley supplier, I've had the opportunity to work with various customers and understand the challenges they face in enhancing torque capacity. In this blog, I'll share some effective strategies and considerations for increasing the torque capacity of v-belt pulleys.

Understanding Torque and V-Belt Pulleys

Before diving into the methods of increasing torque capacity, it's crucial to understand what torque is and how v-belt pulleys function. Torque is the rotational force that causes an object to rotate around an axis. In the context of v-belt pulleys, torque is transferred from the driving pulley to the driven pulley through the v-belts. The amount of torque that a v-belt pulley can transmit depends on several factors, including the pulley's size, material, groove design, and the tension of the v-belts.

Selecting the Right Pulley Material

The material of the v-belt pulley plays a significant role in its torque capacity. Different materials have different mechanical properties, such as strength, hardness, and wear resistance. Here are some common materials used for v-belt pulleys and their characteristics:

• Cast Iron Pulley: Cast iron is a popular choice for v-belt pulleys due to its high strength, good castability, and relatively low cost. Cast Iron Pulley can withstand high loads and are suitable for applications where durability is essential. However, cast iron is relatively heavy, which may not be ideal for applications where weight is a concern.
• Steel Pulley: Steel pulleys offer high strength and excellent wear resistance. They are lighter than cast iron pulleys and can be used in high-speed applications. Steel pulleys are often heat-treated to improve their mechanical properties further.
• Aluminum Pulley: Aluminum pulleys are lightweight and have good corrosion resistance. They are suitable for applications where weight reduction is critical, such as in automotive and aerospace industries. However, aluminum pulleys may have lower torque capacity compared to cast iron or steel pulleys.

Optimizing the Pulley Design

The design of the v-belt pulley can also have a significant impact on its torque capacity. Here are some design considerations to increase torque transmission:

• Groove Design: The groove design of the v-belt pulley affects the contact area between the belt and the pulley. A well-designed groove can increase the frictional force between the belt and the pulley, thereby increasing the torque capacity. The groove angle, depth, and width should be carefully selected to match the type and size of the v-belts used.
• Pulley Diameter: Increasing the diameter of the pulley can increase the torque capacity. A larger diameter pulley provides a greater lever arm, which allows for more torque to be transmitted. However, increasing the pulley diameter may also increase the overall size and weight of the system.
• Multiple Grooves: Using Dual Groove Belt Pulley or pulleys with more grooves can increase the torque capacity. Multiple grooves allow for multiple v-belts to be used simultaneously, which distributes the load and increases the total frictional force between the belts and the pulley.

Proper Belt Selection and Tensioning

The type and tension of the v-belts used with the pulleys are crucial for maximizing torque capacity. Here are some tips for belt selection and tensioning:

• Belt Type: Different types of v-belts have different load-carrying capacities and performance characteristics. It's important to select the right type of belt based on the application requirements, such as the power to be transmitted, the speed of the system, and the operating environment.
• Belt Tension: Proper belt tension is essential for efficient torque transmission. If the belt is too loose, it may slip on the pulley, resulting in reduced torque capacity and increased wear. On the other hand, if the belt is too tight, it can cause excessive stress on the pulleys and bearings, leading to premature failure. The belt tension should be adjusted according to the manufacturer's recommendations.

Using Keyways and Machined Features

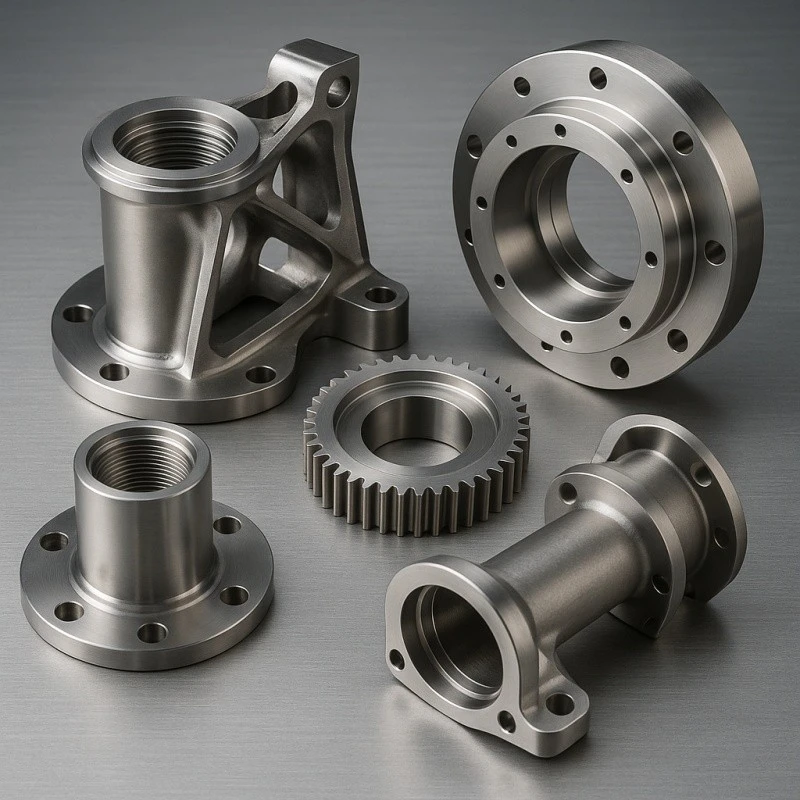

Machined Pulley With Keyway can provide a more secure connection between the pulley and the shaft, which can increase the torque capacity. Keyways prevent the pulley from slipping on the shaft, ensuring that the torque is transmitted effectively. Additionally, other machined features, such as splines or set screws, can also be used to enhance the connection between the pulley and the shaft.

Maintenance and Inspection

Regular maintenance and inspection of the v-belt pulleys and belts are essential for ensuring their optimal performance and torque capacity. Here are some maintenance tips:

• Cleaning: Keep the pulleys and belts clean to prevent the accumulation of dirt, debris, and oil, which can reduce the frictional force between the belt and the pulley.
• Lubrication: If required, lubricate the bearings and other moving parts to reduce friction and wear.
• Inspection: Regularly inspect the pulleys and belts for signs of wear, damage, or misalignment. Replace any worn or damaged components promptly to prevent further problems.

Conclusion

Increasing the torque capacity of v-belt pulleys requires a comprehensive approach that considers the pulley material, design, belt selection, tensioning, and maintenance. By following the strategies outlined in this blog, you can enhance the performance and efficiency of your power transmission systems. As a v-belt pulley supplier, I'm committed to providing high-quality pulleys and expert advice to help you meet your torque capacity requirements. If you're interested in purchasing v-belt pulleys or have any questions about increasing torque capacity, please feel free to contact me for further discussion and procurement negotiation.
